Honeywell S87B1016 Single-rod Direct Spark Ignition Control with 11-Second Trial and Lockout Timing

Honeywell S87B1016 Single-rod Direct Spark Ignition Control with 11-Second Trial and Lockout Timing
Images for general purposes only. Actual may be different than depicted.
Honeywell S87B1016 Single-rod Direct Spark Ignition Control with 11-Second Trial and Lockout Timing Honeywell S87B1016 Direct Spark Ignition Control Module Honeywell S87B1016 Direct Spark Ignition Module 24 VAC No Pre-purge Honeywell S87B1016 One Rod Electrode Natural or LP Gas Direct Spark Ignition Control

Honeywell S87B1016 Single-rod Direct Spark Ignition Control with 11-Second Trial and Lockout Timing

SKU: S87B1016
In Stock 23
Rating:
$240.69 /ea
Qty of 5 - $198.88 /ea
0
$0.00
0
$0.00
0

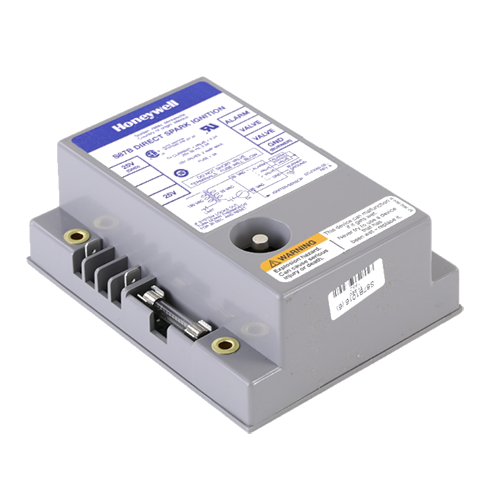

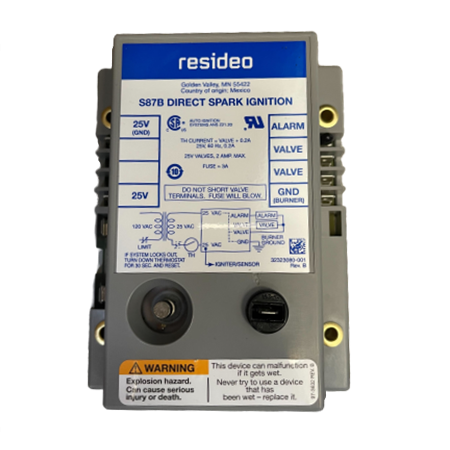

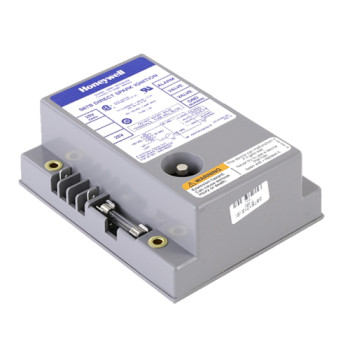

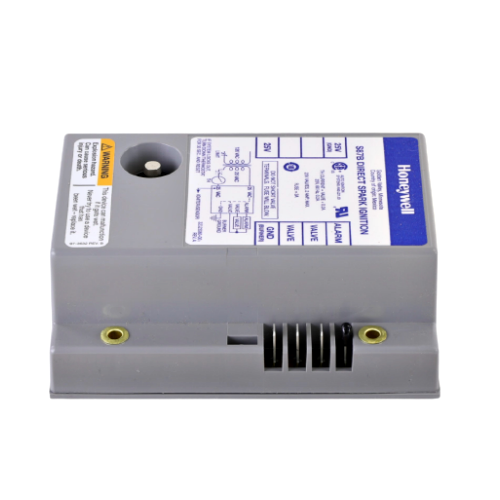

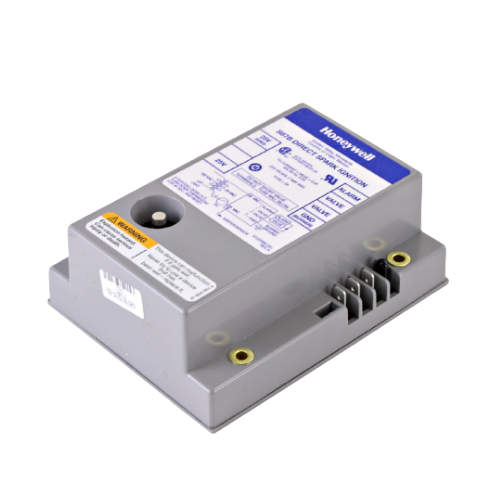

Honeywell S87B1016 DSI Ignition Module is used to control the direct spark ignition systems of heating appliances.  The unit senses flame and starts ignition on gas fire furnaces, boilers, and other heating devices by using a single electrode.  Used with Natural or Liquid Propane gases

The S87B Models are compatible with any gas controller with 2 amps or less rating for direct spark ignition applications. There is no pre-purge on this model and a single trial for ignition.  If it fails, there is a shutdown and 11-second lockout, followed by an 11 second ignition trial time.  This model also includes an alarm terminal.  For installation and wiring diagram instructions see the Technical Data tab, however, it always recommended that installation and service be performed by a licensed technician.

Honeywell Direct Spark Ignition Module features thermostat reset after a lockout, ignition failure leads to lockout after one trial of ignition, it generates high voltage potential for main burner ignition and can control gas and gas ignition sequence.


Thermostat Heat Anticipator Setting 0.2A plus valve current draw
Alarm Contacts 0.5A at 25 VAC
Valve Contacts 2.0A at 25 VAC
Current Rating 0.2A at 25 VAC
Frequency 60 Hz
Voltage 25 VAC
Flame Failure Reignition Time 0.8 second maximum
Flame Current Signal Required 1.5uA

Following are the Attached files for this product:

Honeywell S87B1016 Direct Spark Ignition Control Technical Datasheet
